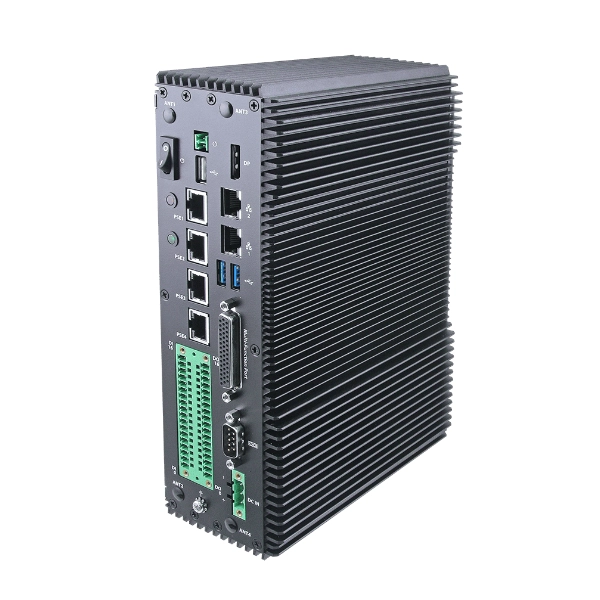

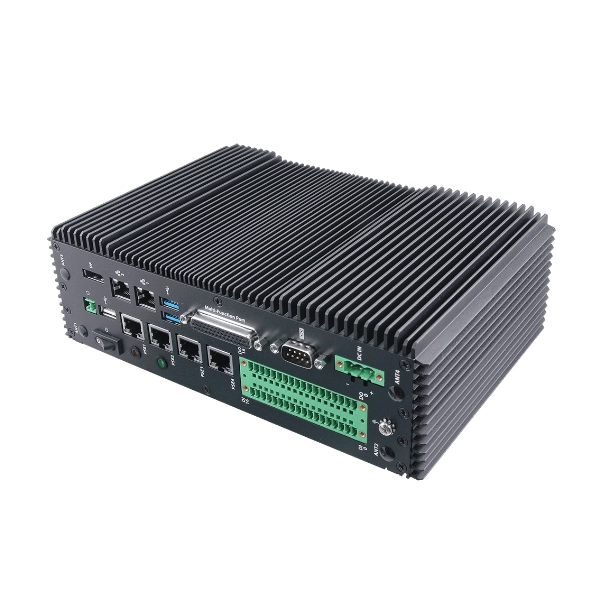

EMS-SKLU-GPIO

AVALUE EMS-SKLU-GPIO menghadirkan Industrial DIN Rail PC berbasis Intel® Core™ i7/i5/i3/Celeron® Skylake-U dalam desain fanless rugged embedded system, dilengkapi GPIO terintegrasi dan dual Gigabit Ethernet untuk aplikasi otomasi industri.

  • Menggunakan prosesor Intel® Skylake-U untuk performa komputasi yang andal.
  • GPIO terintegrasi untuk koneksi langsung dengan sensor, aktuator, dan perangkat kontrol.
  • Dual Gigabit Ethernet untuk komunikasi jaringan industri yang stabil.
  • Desain DIN Rail yang ringkas dan mudah dipasang pada panel kontrol.
  • Mendukung berbagai opsi ekspansi untuk menyesuaikan kebutuhan aplikasi.
  • Cocok untuk implementasi Industrial IoT (IIoT), Edge Computing, dan otomasi industri.
  • Dirancang untuk pengoperasian yang stabil pada lingkungan industri.
Add To Cart
Data Sheet

AVALUE EMS-SKLU-GPIO menghadirkan Industrial DIN Rail PC yang dirancang untuk kebutuhan Machine Control, Industrial IoT (IIoT), Edge Computing, dan integrasi sistem otomasi. Dukungan prosesor Intel® Skylake-U memberikan performa komputasi yang stabil untuk menjalankan aplikasi industri, sementara GPIO terintegrasi memudahkan komunikasi dengan berbagai sensor, aktuator, maupun perangkat kontrol lainnya.

Desain DIN Rail yang ringkas memudahkan pemasangan di dalam panel kontrol tanpa memerlukan ruang yang besar. Perangkat ini juga dilengkapi dual Gigabit Ethernet untuk komunikasi jaringan yang andal serta berbagai opsi ekspansi yang memberikan fleksibilitas dalam pengembangan sistem otomasi industri.

Sebagai Distributor Resmi AVALUE di Indonesia, PT Lestari Elektrik Otomasi siap menyediakan produk AVALUE original, konsultasi teknis, hingga dukungan implementasi untuk berbagai kebutuhan Industrial PC dan Edge Computing.

Applications

  • Industrial Edge Computing
  • Machine Control System
  • Industrial IoT (IIoT)
  • Data Acquisition (DAQ)
  • SCADA Gateway
  • Factory Automation
  • Smart Factory
  • Building Automation System (BAS)
  • Energy Monitoring
  • Machine Builder (OEM)

Optimalkan sistem otomasi dengan AVALUE EMS-SKLU-GPIO untuk kebutuhan Industrial PC, Machine Control, dan Edge Computing. PT Lestari Elektrik Otomasi siap membantu mulai dari pemilihan produk, konsultasi teknis, hingga implementasi solusi yang sesuai dengan kebutuhan industri Anda. Hubungi kami sekarang untuk mendapatkan informasi produk, konsultasi, dan penawaran terbaik.

AVALUE EMS-SKLU-GPIO: Spesifikasi Teknis
AVALUE EMS-SKLU-GPIO: Spesifikasi Teknis
Spesifikasi EMS-SKLU-GPIO
System Information
ProcessorIntel® Core™ i7-6600U, 2-Core, 2.6GHz processor
Intel® Core™ i5-6300U, 2-Core, 2.4GHz processor
Intel® Core™ i3-6100U, 2-Core, 2.3GHz processor
Intel® Celeron® 3955U, 2-Core, 2.0GHz processor
System Memory1 x 260-Pin DDR4 2133MHz SO-DIMM up to 16 GB
Watchdog TimerH/W Reset, 1sec. ~ 65535sec.
H/W Status MonitorMonitoring CPU & System Temperature and Voltage
SBCEBM-SKLUS + AUX-M08
Expansion
M.21 x M.2 2242/3042, B-Key, supports SATA/ PCIex1/ USB3.0
PCIe1 x Mini PCIe, support PCIe/USB2.0
Storage
M.21 x M.2 2242 (SATA)

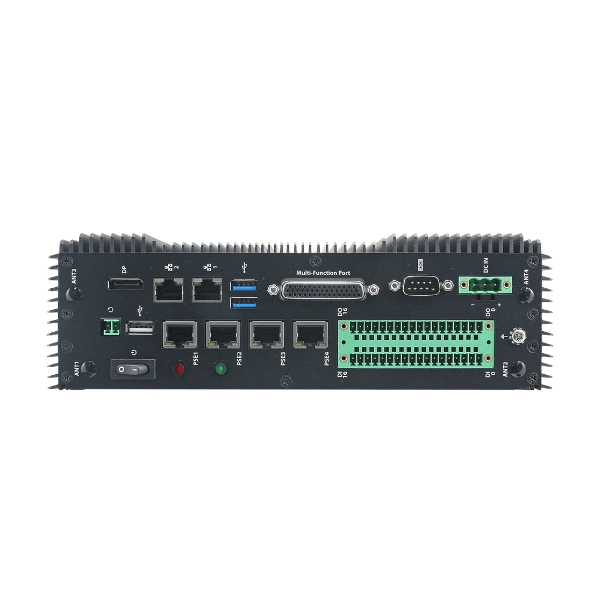

Rear I/O
USB2 x USB 3.0
1 x USB 2.0
COM Port2 x RS-232/422/485 (Jumper), supports auto-flow
LAN Port4 x Powered LAN
2 x RJ-45
SMBus1 x SMBus
AudioMic-In, Line-In and Line-Out
Digital I/O1 x 44bit GPIO, 32bit w/1.5KV isolation
1 x 12bit GPIO
Antenna2 x Knockouts for Antenna Mounting
AC/DC Input3-Pin Terminal Block
Display
Graphic ChipsetIntel® Skylake SoC integrated Graphics
ResolutionDP: Max. resolution 4096x2304 @ 60Hz
Audio
Audio CodecRealtek ALC888S supports 2.1-CH
Ethernet
LAN Chipset1 x Intel® I211AT
1 x Intel® I219LM
4 x Intel® I210AT
Specification10/100/1000 Base-Tx GbE compatible
Power Requirement
AdapterOptional AC-DC Adapter
ACPISingle Power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant
Power ModeAT/ATX (ATX is default setting)
Software Support
OSWin 10 / Win 8.1 / Win 7 / Linux
Mechanical & Environmental
Operating Temp.(w/SSD), ambient w/ air flow
-20°C ~ 50°C (14°F ~ 122°F)
Storage Temp.-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)9.45" x 6.2" x 2.95" (240mm x 158mm x 75mm)
Vibration TestWith SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
Shock TestWith SSD : 50Grms, IEC 60068-2-27, Half Sine, 11ms
Mounting KitDin-Rail kit (Standard)
Ordering Information
Ordering InformationIntel® 6th Skylake Celeron Processor i7/i5/i3/Celeron Fanless Rugged Embedded System, w/ 4 Powered LAN+44-bit GPIO IET Module

EMS-SKLU-66-B1-AR (i7-6600U)
EMS-SKLU-63-B1-AR (i5-6300U)
EMS-SKLU-61-B1-AR (i3-6100U)
EMS-SKLU-39-B1-AR (3955U)
* Specifications are subject to change without prior notice. Please refer to the official AVALUE datasheet for the latest technical information.
