BRJ45
No items found.

BRJ45

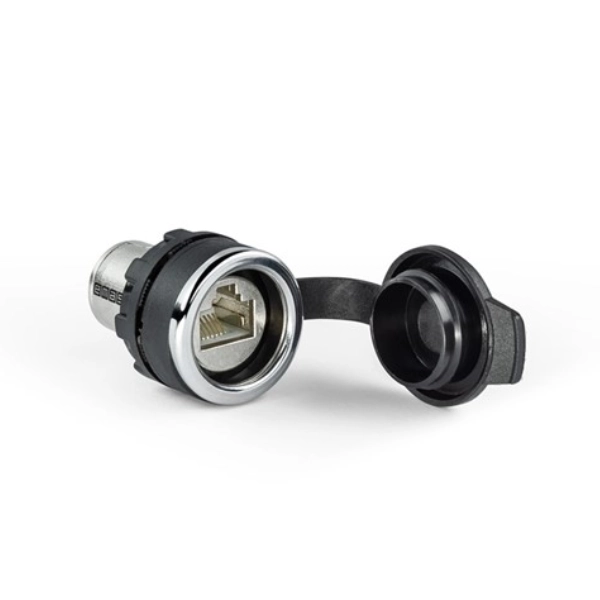

EMAS BRJ45 menghadirkan konektor RJ45 Female-to-Female Panel Mount 22 mm untuk akses Ethernet yang rapi, aman, dan mudah diintegrasikan pada panel kontrol industri.

  • Konektor RJ45 Female-to-Female untuk pemasangan pada panel
  • Memudahkan akses koneksi Ethernet tanpa membuka panel kontrol.
  • Mendukung komunikasi jaringan antara PLC, HMI, Industrial PC, SCADA, dan perangkat Ethernet lainnya.
  • Desain panel mount yang rapi, kokoh, dan profesional.
  • Mempermudah proses commissioning, troubleshooting, dan maintenance.
  • Ukuran pemasangan standar 22 mm, kompatibel dengan lubang push button industri.
Add To Cart
Data Sheet

EMAS BRJ45 menghadirkan konektor RJ45 Female-to-Female Panel Mount berdiameter 22 mm yang memudahkan akses komunikasi Ethernet pada panel kontrol, kabinet listrik, maupun mesin industri. Desain panel mount membantu menciptakan instalasi yang lebih rapi sekaligus mempermudah proses koneksi perangkat tanpa perlu membuka panel.

Konektor ini sangat cocok untuk berbagai kebutuhan komunikasi PLC, HMI, Industrial PC, SCADA, maupun perangkat Ethernet lainnya. Dengan desain yang ringkas dan pemasangan standar 22 mm, BRJ45 menjadi solusi praktis bagi panel builder, machine maker, maupun integrator sistem yang membutuhkan akses jaringan yang aman dan profesional.

Sebagai Distributor Resmi EMAS di Indonesia, PT Lestari Elektrik Otomasi siap menyediakan produk EMAS original beserta dukungan teknis untuk berbagai kebutuhan panel kontrol dan otomasi industri.

Applications

  • Panel kontrol industri
  • Panel listrik
  • PLC Ethernet Communication
  • HMI Communication
  • SCADA Network
  • Industrial Ethernet
  • Machine Builder (OEM)
  • Electrical Control Cabinet

Lengkapi panel kontrol dengan EMAS BRJ45 Panel Mount untuk koneksi Ethernet yang lebih praktis, aman, dan profesional. PT Lestari Elektrik Otomasi siap membantu Anda memilih produk EMAS yang sesuai dengan kebutuhan aplikasi. Hubungi kami sekarang untuk mendapatkan konsultasi teknis, informasi produk, dan penawaran terbaik.

EMAS BRJ45: Spesifikasi Teknis
EMAS BRJ45: Spesifikasi Teknis
Spesifikasi RJ45
Product
ProductRJ45
TypeFemale
Dia22 mm
Current (Ie)1,5 A
Dielectric Strength (Body-Contact)1000 Vrms
Dielectric Strength (Contact-Contact)1000 Vrms
Isolation Resistance500 MΩ
Operating Temperature-25 / +85 °C
Pollution Degree3
Protection DegreeIP65
Contact Resistance50 mΩ
Production Time31.12.1899 00:00:00
SerialB Series Plastic
Enclosure500
* Specifications are subject to change without prior notice. Please refer to the official EMAS datasheet for the latest technical information.
