BUSB30
No items found.

BUSB30

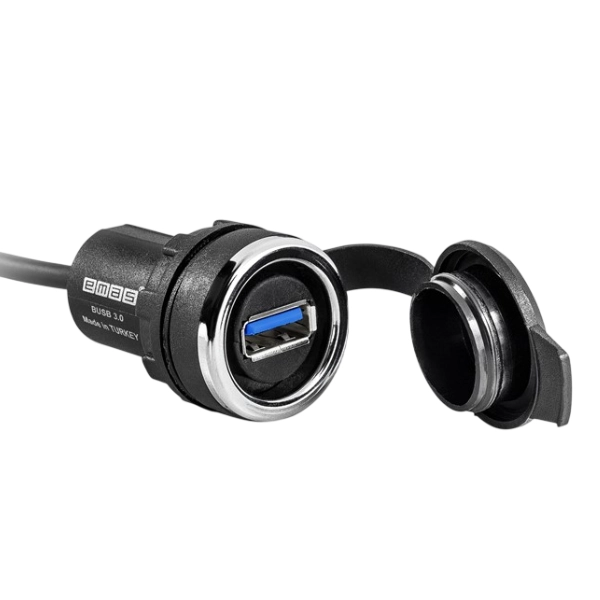

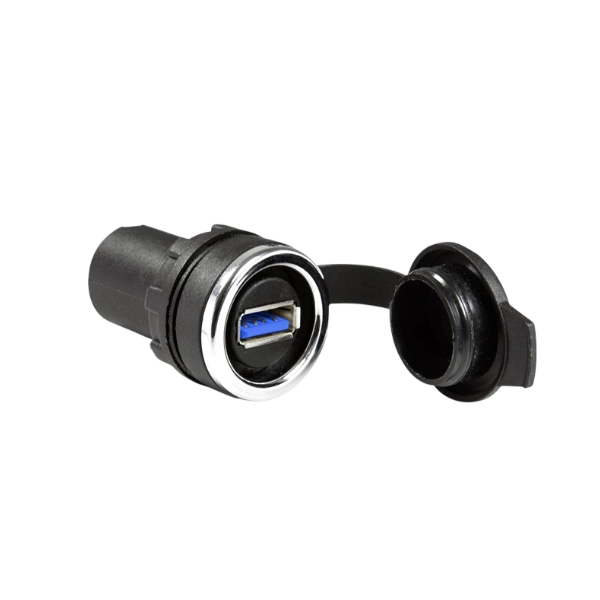

EMAS BUSB30 menghadirkan USB 3.0 Female-to-Female Panel Mount 22 mm untuk akses USB yang rapi, aman, dan mudah diintegrasikan pada panel kontrol maupun mesin industri.

  • Konektor USB 3.0 Female-to-Female untuk pemasangan pada panel.
  • Ukuran pemasangan standar 22 mm, kompatibel dengan lubang push button industri.
  • Memudahkan akses koneksi USB tanpa membuka panel kontrol.
  • Mendukung transfer data berkecepatan tinggi melalui USB 3.0.
  • Desain panel mount yang rapi, kuat, dan profesional.
  • Mempercepat proses pemrograman, konfigurasi, dan maintenance perangkat otomasi.
  • Cocok untuk aplikasi pada panel kontrol, kabinet listrik, dan mesin industri.
Add To Cart
Data Sheet

EMAS BUSB30 menghadirkan solusi USB 3.0 Female-to-Female Panel Mount berdiameter 22 mm yang memudahkan akses koneksi USB pada panel kontrol, mesin, maupun kabinet industri. Desain panel mount memungkinkan instalasi yang rapi tanpa perlu membuka panel saat menghubungkan perangkat USB.

Konektor ini cocok digunakan untuk proses programming PLC, upload/download data HMI, maintenance mesin, hingga transfer data pada berbagai sistem otomasi industri. Dengan kompatibilitas USB 3.0, BUSB30 mendukung kecepatan transfer data yang lebih tinggi dibanding USB generasi sebelumnya sehingga meningkatkan efisiensi pekerjaan teknisi di lapangan.

Sebagai Distributor Resmi EMAS di Indonesia, PT Lestari Elektrik Otomasi siap menyediakan produk EMAS original beserta dukungan teknis untuk kebutuhan panel builder, machine maker, dan industri manufaktur.

Applications

  • Panel kontrol industri
  • Panel listrik
  • Mesin otomasi
  • PLC Programming Port
  • HMI Data Transfer
  • Machine Builder (OEM)
  • Electrical Control Cabinet
  • Maintenance & Service Panel
EMAS BUSB30: Spesifikasi Teknis
EMAS BUSB30: Spesifikasi Teknis
Spesifikasi USB Type-A
Product
USB3.0 Female
TypeFemale
Dia22 mm
Dielectric Strength (Body-Contact)100V AC
Dielectric Strength (Contact-Contact)100V AC
Isolation Resistance100 MΩ
Operating Temperature-25 / +85 °C
Storage TemperatureUSB-A
Pollution Degree3
Protection DegreeIP65
Contact Resistance50 mΩ
Production Time31.12.1899 00:00:00
SerialB Series Plastic
Voltage10 N
Enclosure1500
* Specifications are subject to change without prior notice. Please refer to the official EMAS datasheet for the latest technical information.
