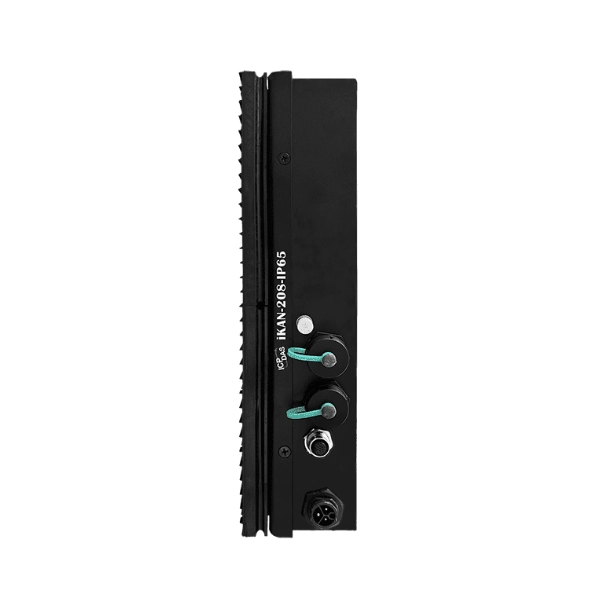

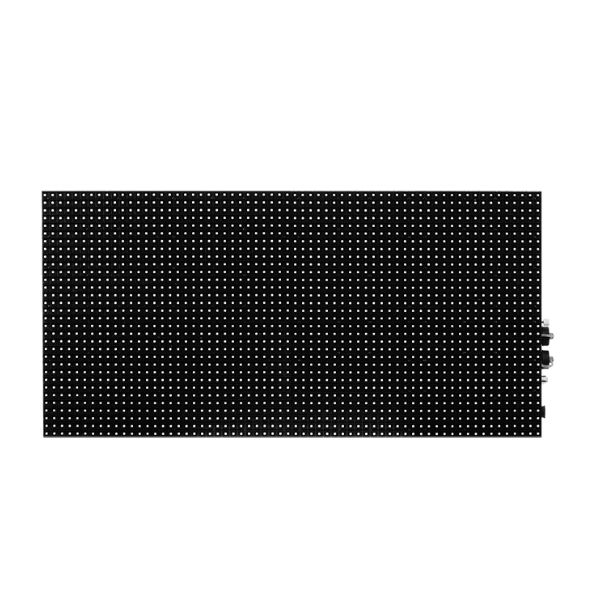

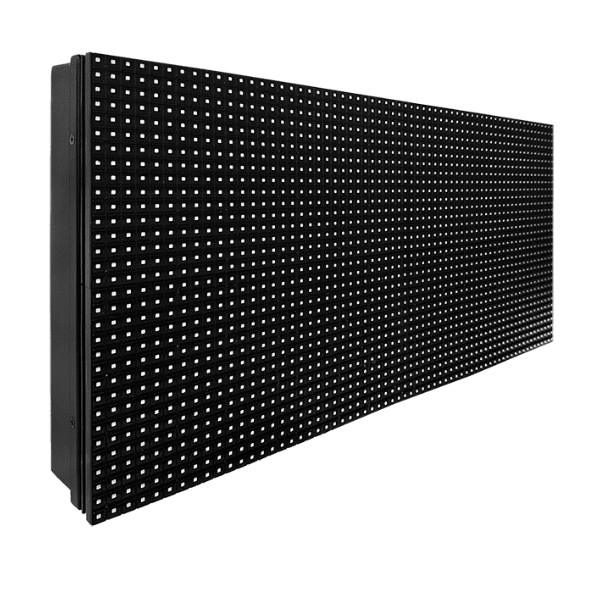

Name: iKAN-200-IP65 Series
Brand: ICP DAS

ICP DAS iKAN-200-IP65 Series adalah industrial LED message display dengan tinggi karakter 16 cm yang dirancang untuk menampilkan status mesin, alarm, data produksi, dan informasi operasional secara real-time. Dengan perlindungan IP65, perangkat ini mampu beroperasi pada lingkungan industri yang terpapar debu dan percikan air. Dukungan komunikasi Modbus TCP dan Modbus RTU memungkinkan integrasi yang mudah dengan PLC, HMI, SCADA, maupun sistem otomasi industri lainnya.

‍

Melalui Web-based User Interface, pengguna dapat membuat dan mengelola pesan langsung melalui browser tanpa memerlukan software tambahan. iKAN-200-IP65 Series mampu menyimpan hingga 128 pesan dengan prioritas yang dapat diatur, mendukung kombinasi teks dan variabel dalam satu tampilan, serta dapat dikendalikan melalui PLC, PC, maupun smartphone.

‍

Selain itu, iKAN-200-IP65 Series dapat terhubung langsung dengan ICP DAS DL/CL Series Sensor Modules untuk menampilkan data monitoring secara real-time. Dilengkapi RTC (Real Time Clock), dukungan multi-bahasa, serta perlindungan IP65, perangkat ini sangat cocok digunakan untuk Andon System, Factory Automation, Production Monitoring, Smart Factory, dan berbagai aplikasi Industry 4.0 di lingkungan industri yang menuntut ketahanan terhadap debu dan air.

‍

Applications

‍

Andon Display
Machine Status Display
Production Line Monitoring
Alarm & Fault Notification
Production Target Display
Factory Information Board
Warehouse & Logistics Monitoring
Energy Monitoring System
Smart Factory & Industry 4.0
Building Automation
Environmental Monitoring
Area Produksi dengan Debu dan Percikan Air
Public Information Display

‍

‍

iKAN Series - Modbus LED Display

Modbus LED Display (RoHS Compliant)

Model	Row	ASCII/Unicode Character (per Row)	Board Size	Dimensions (mm) (W x H x D)	Weight	Communication Interface
Model	Row	ASCII/Unicode Character (per Row)	Board Size	Dimensions (mm) (W x H x D)	Weight	Ethernet	COM Ports
iKAN-116	1	16/8	Standard	1347 x 160 x 73	4 Kg	Modbus TCP Slave Max. 8 connections Web-based operation interface	Modbus RTU Slave RS-485 x 2
iKAN-116S	1	16/8	Small	834 x 130 x 54	2 Kg
iKAN-124	1	24/12	Standard	1987 x 160 x 73	4.6 Kg
iKAN-124S	1	24/12	Small	1218 x 130 x 54	2.5 Kg
iKAN-208	2	8/4	Standard	707 x 320 x 53	4 Kg
iKAN-216	2	16/8	Standard	1347 x 320 x 53	8 Kg
iKAN-224	2	24/12	Standard	1987 x 320 x 53	12 Kg
iKAN-216t	2	16/8	Tiny	318 x 128 x 62	1.8 Kg
iKAN-224t	2	24/12	Tiny	450 x 128 x 62	3 Kg

Modbus LED Display (Non RoHS Compliant)

Model	Row	ASCII/Unicode Character (per Row)	Board Size	Dimensions (mm) (W x H x D)	Weight	Communication Interface
Model	Row	ASCII/Unicode Character (per Row)	Board Size	Dimensions (mm) (W x H x D)	Weight	Ethernet	COM Ports
iKAN-116A	1	16/8	Standard	1347 x 160 x 73	4 Kg	Modbus TCP Slave Max. 8 connections Web-based operation interface	Modbus RTU Slave RS-485 x 2
iKAN-124A	1	24/12	Standard	1987 x 160 x 73	4.6 Kg
iKAN-208A	2	8/4	Standard	707 x 320 x 53	4 Kg
iKAN-216A	2	16/8	Standard	1347 x 320 x 53	8 Kg
iKAN-224A	2	24/12	Standard	1987 x 320 x 53	12 Kg

Water-proof, Modbus LED Display (RoHS Compliant)

Model	Row	ASCII/Unicode Character (per Row)	Board Size	Dimensions (mm) (W x H x D)	Weight	Communication Interface
Model	Row	ASCII/Unicode Character (per Row)	Board Size	Dimensions (mm) (W x H x D)	Weight	Ethernet	COM Ports
iKAN-116-IP65	1	16/8	Standard	1347 x 160 x 91	4 Kg	Modbus TCP Slave Max. 8 connections Web-based operation interface	Modbus RTU Slave RS-485 x 2
iKAN-116S-IP65	1	16/8	Small	1347 x 160 x 73	4 Kg
iKAN-124-IP65	1	24/12	Standard	1989 x 160 x 91	4.6 Kg
iKAN-124S-IP65	1	16/8	Small	1347 x 160 x 73	4 Kg
iKAN-208-IP65	2	8/4	Standard	708 x 320 x 91	4 Kg
iKAN-216-IP65	2	16/8	Standard	1348 x 320 x 91	8 Kg
iKAN-224-IP65	2	24/12	Standard	1988 x 320 x 91	12 Kg

Water-proof, Modbus LED Display (Non RoHS Compliant)

Model	Row	ASCII/Unicode Character (per Row)	Board Size	Dimensions (mm) (W x H x D)	Weight	Communication Interface
Model	Row	ASCII/Unicode Character (per Row)	Board Size	Dimensions (mm) (W x H x D)	Weight	Ethernet	COM Ports
iKAN-116A-IP65	1	16/8	Standard	1347 x 160 x 91	4 Kg	Modbus TCP Slave Max. 8 connections Web-based operation interface	Modbus RTU Slave RS-485 x 2
iKAN-124A-IP65	1	24/12	Standard	1989 x 160 x 91	4.6 Kg
iKAN-208A-IP65	2	8/4	Standard	708 x 320 x 91	4 Kg
iKAN-216A-IP65	2	16/8	Standard	1348 x 320 x 91	8 Kg
iKAN-224A-IP65	2	24/12	Standard	1988 x 320 x 91	12 Kg

iKAN Series - Spesifikasi Teknis

iKAN-200-IP65: Spesifikasi Teknis
Model	iKAN-208-IP65	iKAN-224-IP65
Display
Text Color	Red, Blue, Yellow, Green, Light Blue, Purple or White
Character Sets	16 x 16 Unicode or 8 x 16 ASCII
Display Row	2
Display ASCII Characters (per Row)	8	24
Display Unicode Characters (per Row)	4	12
Message Pool	128 common messages with user-defined priority levels, Up to 20 Unicode characters or 50 ASCII characters each
Data Pool	40 Coil values, 64 Float values, and 64 Integer values
RTC (Real-time Clock)	Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year
Ethernet
Port	2 × RJ-45, 10/100 Base-TX, Switch Ports
Protocol	8x Modbus TCP Master, 8x Modbus TCP Slave, GCI and HTTP
Configuration	Web-based User Interface
COM Port
Port	2 × RS-485
Protocol	Modbus RTU Master/Slave
Baudrate (bps)	1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Format	N81, E81, O81
Power
Input Range	100 ~ 240 VAC
Consumption	0.3 A @ AC 120 V	0.5 A @ AC 120 V
Mechanical
Dimensions (W × L × H)	708 × 320 × 91 mm	1988 × 320 × 91 mm
Weight	4 Kg	12 Kg
Installation	Wall mounting
Housing Material	Aluminum
Environment
Operating Temperature	0 ~ +60°C
Storage Temperature	-10 ~ +75°C
Humidity	10 ~ 90% RH, Non-condensing

* Specifications are subject to change without prior notice. Please refer to the official ICP DAS datasheet for the latest technical information.
