iKAN-200A-IP65 Series

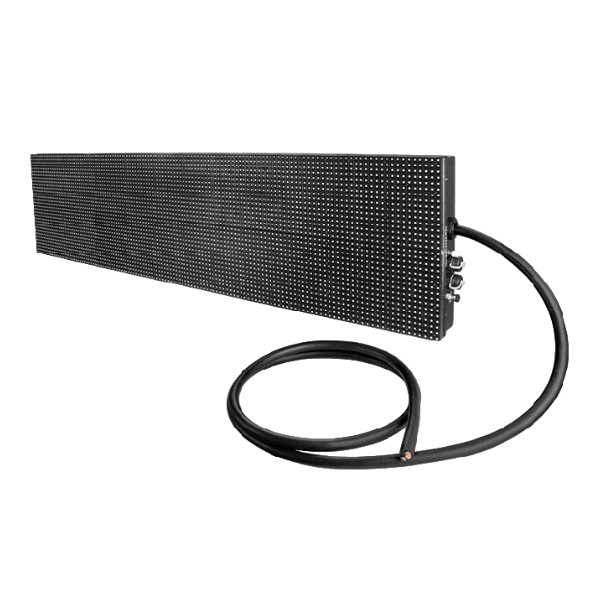

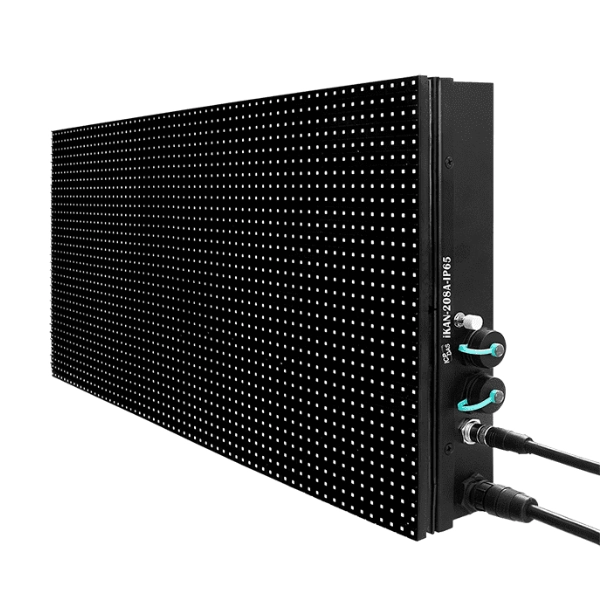

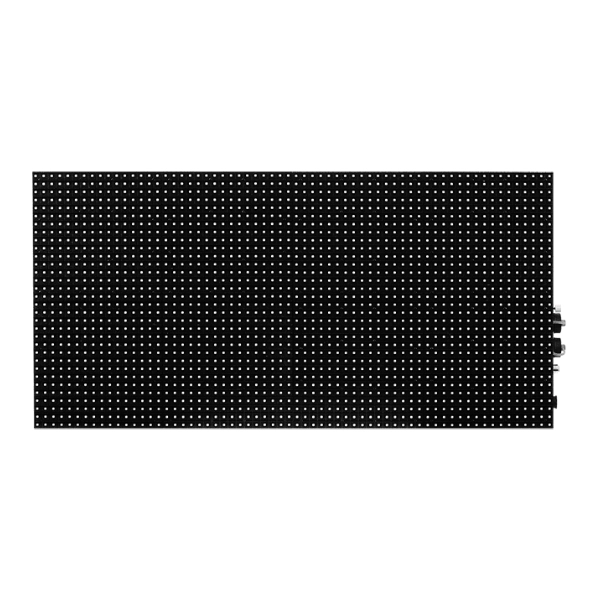

ICP DAS iKAN-200A-IP65 Series merupakan industrial LED message display satu baris dengan tinggi karakter 16 cm, perlindungan IP65, dan dukungan komunikasi Modbus RTU serta Modbus TCP. Perangkat ini dirancang untuk menampilkan status mesin, alarm, dan informasi operasional secara real-time pada lingkungan industri yang berdebu maupun lembap.

  • Antarmuka konfigurasi berbasis Web (Web-based User Interface).
  • 7 pilihan warna teks dengan tinggi karakter 16 cm.
  • Menyimpan hingga 128 pesan dengan pengaturan prioritas.
  • Mendukung kombinasi teks dan hingga 168 variabel dalam satu pesan.
  • Dapat dikendalikan dari jarak jauh melalui PLC, PC, atau smartphone.
  • Mendukung protokol Modbus TCP Slave dan Modbus RTU Slave.
  • Terhubung langsung dengan DL/CL Series Sensor Modules untuk menampilkan data monitoring secara real-time.
  • Dilengkapi RTC (Real Time Clock) bawaan.
  • Memiliki perlindungan IP65 terhadap debu dan percikan air.
  • Mendukung berbagai bahasa (multi-language).
Add To Cart
Data Sheet
Details
Specification

ICP DAS iKAN-200A-IP65 Series adalah industrial LED message display dengan tinggi karakter 16 cm yang dirancang untuk menampilkan status mesin, alarm, data produksi, dan informasi operasional secara real-time. Dengan perlindungan IP65, perangkat ini mampu beroperasi secara andal di lingkungan industri yang terpapar debu dan percikan air. Dukungan komunikasi Modbus TCP dan Modbus RTU memungkinkan integrasi yang mudah dengan PLC, HMI, SCADA, maupun berbagai sistem otomasi industri.

‍

Melalui Web-based User Interface, pengguna dapat membuat, mengedit, dan mengelola pesan langsung melalui browser tanpa memerlukan software tambahan. iKAN-200A-IP65 Series mampu menyimpan hingga 128 pesan dengan prioritas yang dapat diatur, mendukung kombinasi teks dan variabel dalam satu tampilan, serta dapat dikendalikan dari jarak jauh melalui PLC, PC, maupun smartphone.

‍

Selain itu, iKAN-200A-IP65 Series dapat terhubung langsung dengan ICP DAS DL/CL Series Sensor Modules untuk menampilkan data monitoring secara real-time. Dilengkapi RTC (Real Time Clock), dukungan multi-bahasa, dan perlindungan IP65, perangkat ini menjadi solusi ideal untuk Andon System, Factory Automation, Production Monitoring, Smart Factory, serta berbagai implementasi Industry 4.0 yang membutuhkan visualisasi informasi dengan ketahanan tinggi terhadap lingkungan industri.

‍

Applications

‍

  • Andon Display
  • Machine Status Display
  • Production Line Monitoring
  • Alarm & Fault Notification
  • Production Target Display
  • Factory Information Board
  • Warehouse & Logistics Monitoring
  • Energy Monitoring System
  • Smart Factory & Industry 4.0
  • Building Automation
  • Environmental Monitoring
  • Area Produksi dengan Debu dan Percikan Air
  • Public Information Display

‍

iKAN LED Model Name

‍

iKAN Series - Modbus LED Display
Modbus LED Display (RoHS Compliant)
Model Row ASCII/Unicode
Character
(per Row)		 Board
Size		 Dimensions (mm)
(W x H x D)		 Weight Communication Interface
Ethernet COM Ports
iKAN-116 1 16/8 Standard 1347 x 160 x 73 4 Kg Modbus TCP Slave
Max. 8 connections
Web-based operation interface		 Modbus RTU Slave
RS-485 x 2
iKAN-116S116/8Small834 x 130 x 542 Kg
iKAN-124124/12Standard1987 x 160 x 734.6 Kg
iKAN-124S124/12Small1218 x 130 x 542.5 Kg
iKAN-20828/4Standard707 x 320 x 534 Kg
iKAN-216216/8Standard1347 x 320 x 538 Kg
iKAN-224224/12Standard1987 x 320 x 5312 Kg
iKAN-216t216/8Tiny318 x 128 x 621.8 Kg
iKAN-224t224/12Tiny450 x 128 x 623 Kg
Modbus LED Display (Non RoHS Compliant)
Model Row ASCII/Unicode
Character
(per Row)		 Board
Size		 Dimensions (mm)
(W x H x D)		 Weight Communication Interface
Ethernet COM Ports
iKAN-116A 1 16/8 Standard 1347 x 160 x 73 4 Kg Modbus TCP Slave
Max. 8 connections
Web-based operation interface		 Modbus RTU Slave
RS-485 x 2
iKAN-124A124/12Standard1987 x 160 x 734.6 Kg
iKAN-208A28/4Standard707 x 320 x 534 Kg
iKAN-216A216/8Standard1347 x 320 x 538 Kg
iKAN-224A224/12Standard1987 x 320 x 5312 Kg
Water-proof, Modbus LED Display (RoHS Compliant)
Model Row ASCII/Unicode
Character
(per Row)		 Board
Size		 Dimensions (mm)
(W x H x D)		 Weight Communication Interface
Ethernet COM Ports
iKAN-116-IP65 1 16/8 Standard 1347 x 160 x 91 4 Kg Modbus TCP Slave
Max. 8 connections
Web-based operation interface		 Modbus RTU Slave
RS-485 x 2
iKAN-116S-IP65116/8Small1347 x 160 x 734 Kg
iKAN-124-IP65124/12Standard1989 x 160 x 914.6 Kg
iKAN-124S-IP65116/8Small1347 x 160 x 734 Kg
iKAN-208-IP6528/4Standard708 x 320 x 914 Kg
iKAN-216-IP65216/8Standard1348 x 320 x 918 Kg
iKAN-224-IP65224/12Standard1988 x 320 x 9112 Kg
Water-proof, Modbus LED Display (Non RoHS Compliant)
Model Row ASCII/Unicode
Character
(per Row)		 Board
Size		 Dimensions (mm)
(W x H x D)		 Weight Communication Interface
Ethernet COM Ports
iKAN-116A-IP65 1 16/8 Standard 1347 x 160 x 91 4 Kg Modbus TCP Slave
Max. 8 connections
Web-based operation interface		 Modbus RTU Slave
RS-485 x 2
iKAN-124A-IP65124/12Standard1989 x 160 x 914.6 Kg
iKAN-208A-IP6528/4Standard708 x 320 x 914 Kg
iKAN-216A-IP65216/8Standard1348 x 320 x 918 Kg
iKAN-224A-IP65224/12Standard1988 x 320 x 9112 Kg
iKAN Series - Spesifikasi Teknis
iKAN-200A-IP65 Series: Spesifikasi Teknis
Model iKAN-208A-IP65 iKAN-216A-IP65
Display
Text Color Red, Blue, Yellow, Green, Light Blue, Purple or White
Character Sets 16 x 16 Unicode or 8 x 16 ASCII
Display Row 2
Display ASCII Characters (per Row) 8 16
Display Unicode Characters (per Row) 4 8
Message Pool 128 common messages with user-defined priority levels, Up to 20 Unicode characters or 50 ASCII characters each
Data Pool 40 Coil values, 64 Float values, and 64 Integer values
RTC (Real-time Clock) Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year
Ethernet
Port 2 × RJ-45, 10/100 Base-TX, Switch Ports
Protocol 8x Modbus TCP Master, 8x Modbus TCP Slave, GCI and HTTP
Configuration Web-based User Interface
COM Port
Port 2 × RS-485
Protocol Modbus RTU Master/Slave
Baudrate (bps) 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Format N81, E81, O81
Power
Input Range DC 5V
Consumption Typical (Normal Display):
6 A @ DC 5 V (30 W)

Max. (Full Brightness):
20 A @ DC 5 V (100 W) 		Typical (Normal Display):
12 A @ DC 5 V (60 W)

Max. (Full Brightness):
40 A @ DC 5 V (200 W)
Mechanical
Dimensions (W × L × H) 708 × 320 × 91 mm 1348 × 320 × 91 mm
Weight 4 Kg 8 Kg
Installation Wall mounting
Housing Material Aluminum
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -10 ~ +75°C
Humidity 10 ~ 90% RH, Non-condensing
* Actual current consumption depends on display content and brightness settings.
* Specifications are subject to change without prior notice. Please refer to the official ICP DAS datasheet for the latest technical information.
