Name: DLW-2000 Series
Brand: ICP DAS

ICP DAS DLW-2000 Series merupakan Mini Weather Station Modular yang menawarkan fleksibilitas lebih tinggi dalam pemantauan kondisi lingkungan. Dibandingkan seri DLW-1000, DLW-2000 dirancang untuk aplikasi yang membutuhkan kombinasi sensor yang lebih spesifik, baik untuk parameter cuaca, particulate matter, maupun gas monitoring.

‍

Seri ini mendukung komunikasi RS-485 Modbus RTU, Ethernet Modbus TCP, MQTT, serta dilengkapi real-time data logger sehingga data dapat langsung dikirim ke sistem SCADA, cloud platform, maupun dashboard monitoring.

‍

Dengan pilihan sensor yang lebih beragam, DLW-2000 Series sangat cocok digunakan pada aplikasi pemantauan kualitas udara, industri, kawasan perkotaan, maupun proyek smart environment yang membutuhkan data lingkungan secara komprehensif.

‍

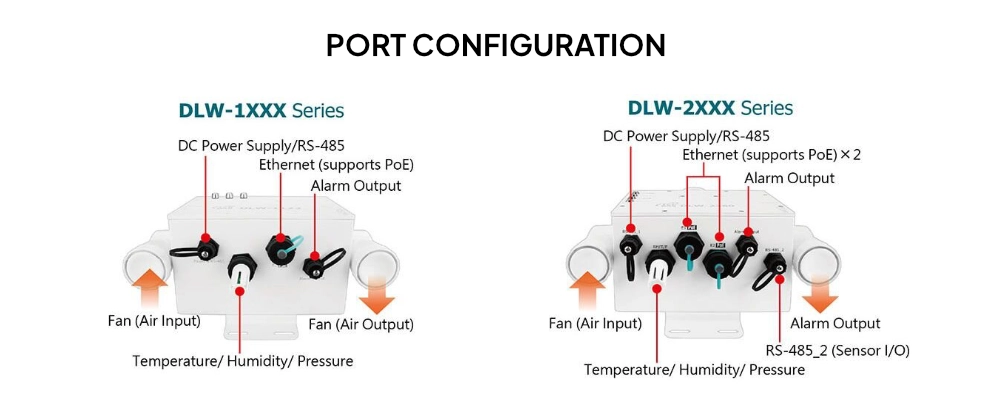

Port Config Differences between ICP DAS DLW-1000 Series vs DLW-2000 Series

‍

‍

Application

‍

Air Quality Monitoring
Smart City
Industrial Environmental Monitoring
Green Building
Smart Agriculture
Renewable Energy
Mining Area
Environmental Research
Waste Management
Water Treatment

‍

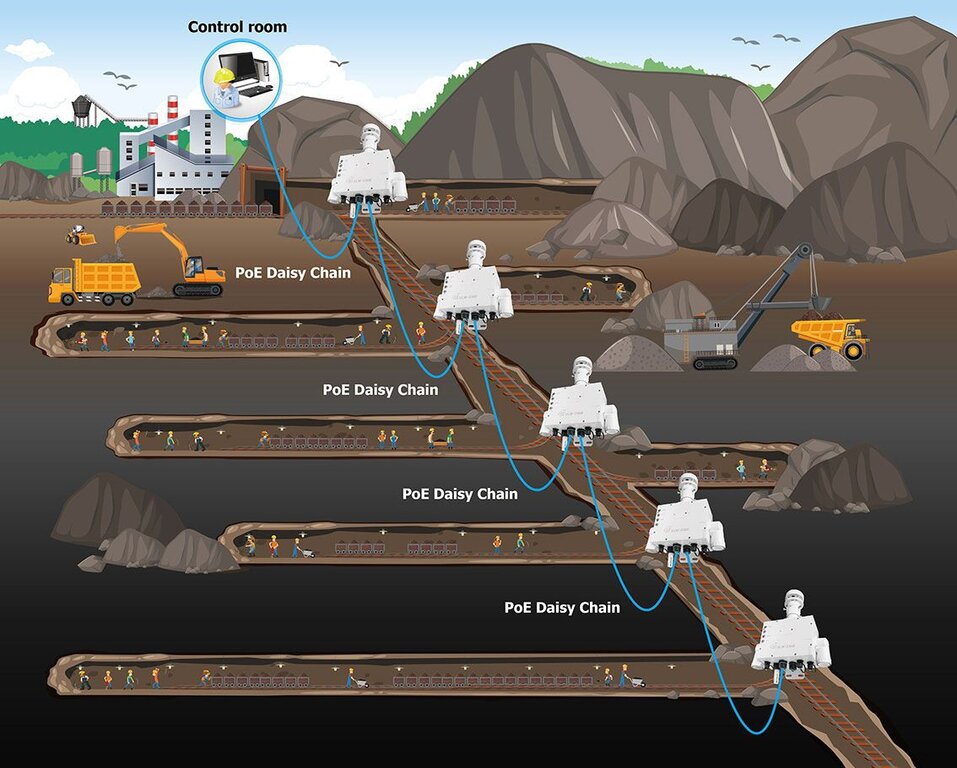

Air Quality Monitoring in Mines using ICP DAS DLW-2000 Series

‍

DLW-2xxx Series - Spesifikasi Sensor

Mini weather station can measure weather information and air quality

DLW-2xxx Series	Sensor
	Weather Monitoring					Particulates	Gas Monitoring
	Wind Speed, Wind Direc- tion, Tempera- ture, Humidity	Pressure, Sea Level	Illumi- nance	Precipita- tion	Solar Radia- tion	PM1, PM2.5, PM10, Particle	CO	CO₂	HCHO	TVOC	NH₃	H₂S	O₂	SO₂	CH₄	Mecha- nical
	Wind Speed, Wind Direc- tion, Tempera- ture, Humidity	Pressure, Sea Level	Illumi- nance	Precipita- tion	Solar Radia- tion	PM1, PM2.5, PM10, Particle	CO	CO₂	HCHO	TVOC	NH₃	H₂S	O₂	SO₂	CH₄	Mecha- nical
DLW-2069-01	√	√	√	-	-	√	√	√	-	-	√	√	√	√	√	B
DLW-2360	√	√	-	-	-	√	√	√	-	-	√	-	√	√	-	D

DLW-2xxx Series & Mini Weather Station

ICP DAS DLW-2000: Spesifikasi Teknis
Model		DLW-2XXX
COM Ports
Ports		2 × RS-485 (1 × Module Communication, 1 × Sensor I/O Reserved)
Baud Rate		1200 ~ 115200 bps
Protocol		Modbus RTU (RS-485)
Ethernet
Ports		10/100 Base-TX, 8-Pin RJ-45 ×2 (1 × PoE Input PD, 1 × PoE Output PSE)
Security		Password and IP Filter
Protocol		Modbus TCP (Ethernet) and MQTT
PoE Technology
PoE Compliance		IEEE 802.3at
PoE Pin Assignment		Ethernet 2 (PSE): V+ (Pin 1,2), V− (Pin 3,6), Alternative A
PoE Daisy Chain		Maximum 5 Devices
System
Alarm		Weather Monitoring (Wind Speed, Wind Direction, Pressure, Illuminance, Sea Level, RH/T, Precipitation), Particulates, Gas Monitoring (CO, CO₂, HCHO, TVOC, NH₃, H₂S, O₂, SO₂, CH₄)
Real Time Clock		Yes
Data Logger		Yes
Relay Output		PhotoMOS Relay, Form A ×4, SPST 100 VDC @ 1A
CPU Module
Watchdog Timer		Yes, Module, Communication (Programmable)
Power
Powered from Terminal Block		+48 VDC
Powered from PoE		Ethernet 1 (PD): IEEE 802.3at, Class 4 (52 V)
Power Consumption	PoE	4.8 W Max
Power Consumption	Non-PoE	4.4 W Max
LED Indicators
Status	PWR	Green for PoE 1 / PoE 2 Normal Operation
Status	Link	Green for Ethernet 1 / Ethernet 2 Linked
Mechanical
Installation		U-bolt or Wall Mounting
Dimensions (mm)		288 × 130 × 389 (W × L × H)
Weight		2.5 kg
Ingress Protection Rating		IP54
Environment
Operating Temperature		-20 to +50°C
Storage Temperature		-30 to +75°C
Humidity		10% to 90% RH, Non-condensing

ICP DAS DLW-2000: Spesifikasi Standard
Type of Sensor	Range	Accuracy	Resolution	Response Time	Warm-up Time	Life Time
Wind Speed	0 ~ 40 m/s	±5%	0.01 m/s	—	—	10 Years
Wind Direction	0 ~ 359°	<3°	1°	—	—	10 Years
Pressure	300 ~ 1200 hPa	±1 hPa	0.1 hPa	—	—	10 Years
Precipitation	0 ~ 100 mm/hr	±10%	0.01 mm/hr	—	—	10 Years
Sea Level	-50 ~ 9000 m	—	0.1 m	—	—	10 Years
Temperature	-40 ~ +80℃	±0.5℃	0.1℃	—	—	10 Years
Humidity	0 ~ 100%	±5%	0.1%	—	—	10 Years
Illuminance	0 ~ 200,000 Lux	±5%	1 Lux	—	—	10 Years
PM1 / PM2.5 / PM10 ⁽¹⁾	0 ~ 1000 μg/m³	±10%	1 μg/m³	1 Second	20 Seconds	5 Years
Solar Radiation	0 ~ 2000 W/m²	±5%	0.1 W/m²	—	—	10 Years

Note 1: The filter patch (FLT-C004) is replaceable.

ICP DAS DLW-2000: Spesifikasi Gas Sensor
Gas Sensor	Range	Accuracy	Resolution	Response Time	Warm-up Time	Life Time
CO	0 ~ 1000 ppm (Electrochemical)	±5%	1 ppm	30 Seconds	60 Seconds	5 Years
CO₂	0 ~ 9999 ppm (NDIR)	±3%	1 ppm	120 Seconds	300 Seconds	15 Years
HCHO	0 ~ 2000 ppb (Electrochemical)	±10%	1 ppb	≤ 60 Seconds	180 Seconds	3 Years
TVOC	0 ~ 60000 ppb (MEMS Metal Oxide)	±15%	1 ppb	60 Seconds	180 Seconds	5 Years
NH₃	0 ~ 100 ppm (Electrochemical)	±5%	1 ppm	< 40 Seconds	60 Seconds	2 Years
H₂S	0 ~ 100 ppm (Electrochemical)	±5%	1 ppm	< 30 Seconds	60 Seconds	2 Years
O₂	0 ~ 25% (Luminescence)	±2%	0.01%	< 30 Seconds (Typical)	120 Seconds	5 Years
CH₄	0 ~ 100% (Catalytic Oxidation)	±5%	1%	< 20 Seconds	15 Seconds	2 Years
SO₂	0 ~ 20 ppm (Electrochemical)	±5%	0.1 ppm	< 40 Seconds	60 Seconds	5 Years
